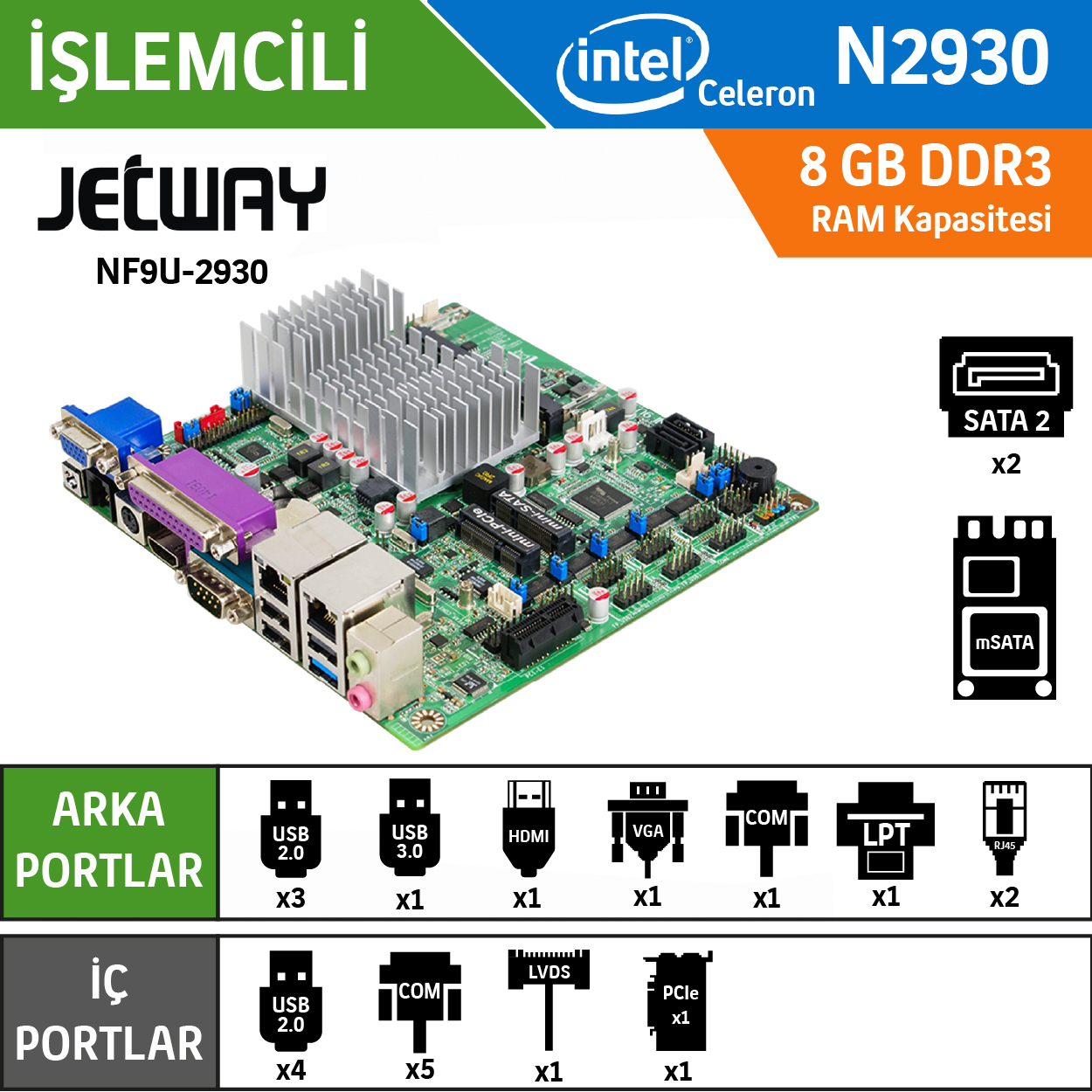

Model
|
–JNF9U-2930 (N2930)
– JNF9U-2932 (N2930, TPM2.0)
|
|
Form Factor
|
– Mini-ITX (170 * 170mm)
|
|
Processor System
|
– Intel® Bay Trail N2930 SoC Processor
– AMI 64Mb Flash ROM BIOS
|
|
Memory
|
–1* DDR3L 1333MHz Dual Channel SO-DIMM up to 8GB
|
|
Storage
|
– 2* SATAII (3 Gb/s)
– 1* mSATA
|
|
Expansion Slot
|
– 1* Half size mini-PCIe
– 1* PCIe x1
|
|
Graphics
|
– Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* HDMI (Max Resolution: 1920×1200@60Hz)
– 1* 24-bits Dual channel LVDS (Max Resolution: 1920×1200@60Hz)
– Support Dual Displays
|
|
Ethernet
|
–2* Realtek RTL8111G GbE
|
|
Audio
|
–HD audio: Realtek ALC888S
|
|
Watchdog Timer
|
–From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
|
Internal I/O
|
–4* USB2.0
– 2* SATAII (3.0Gb/s)
– 1* LVDS
– 5* COM (support RS232 with 5V/12V selectable header)
– 1* GPIO
– 1* Chassis intrusion
– 1* Audio Header
– 1* AT mode
|
|
External I/O
|
–1* USB 3.0
– 3* USB 2.0
– 1* COM (support RS232/422/485 with 5V/12V selectable header)
– 1* HDMI
– 1* VGA
– 2* RJ45
– 1* RJ11
– 1* Parallel
– 1* PS/2
– 1* Audio jack (MIC/Line-out)
– 9V~24V DC-in
|
|
Power
|
9V~24V DC-in PWR (2-pin PWR Connector), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Compliance
|
–CE, FCC, RoHS, REACH
|
|
Temperature
|
–Operating: -20°C ~ 70°C
– Storage: -40°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
|
OS Support
|
–Windows 7 / 8 / 10, Linux
|
|
Warranty
|
– 2 Years Limited Warranty
|
