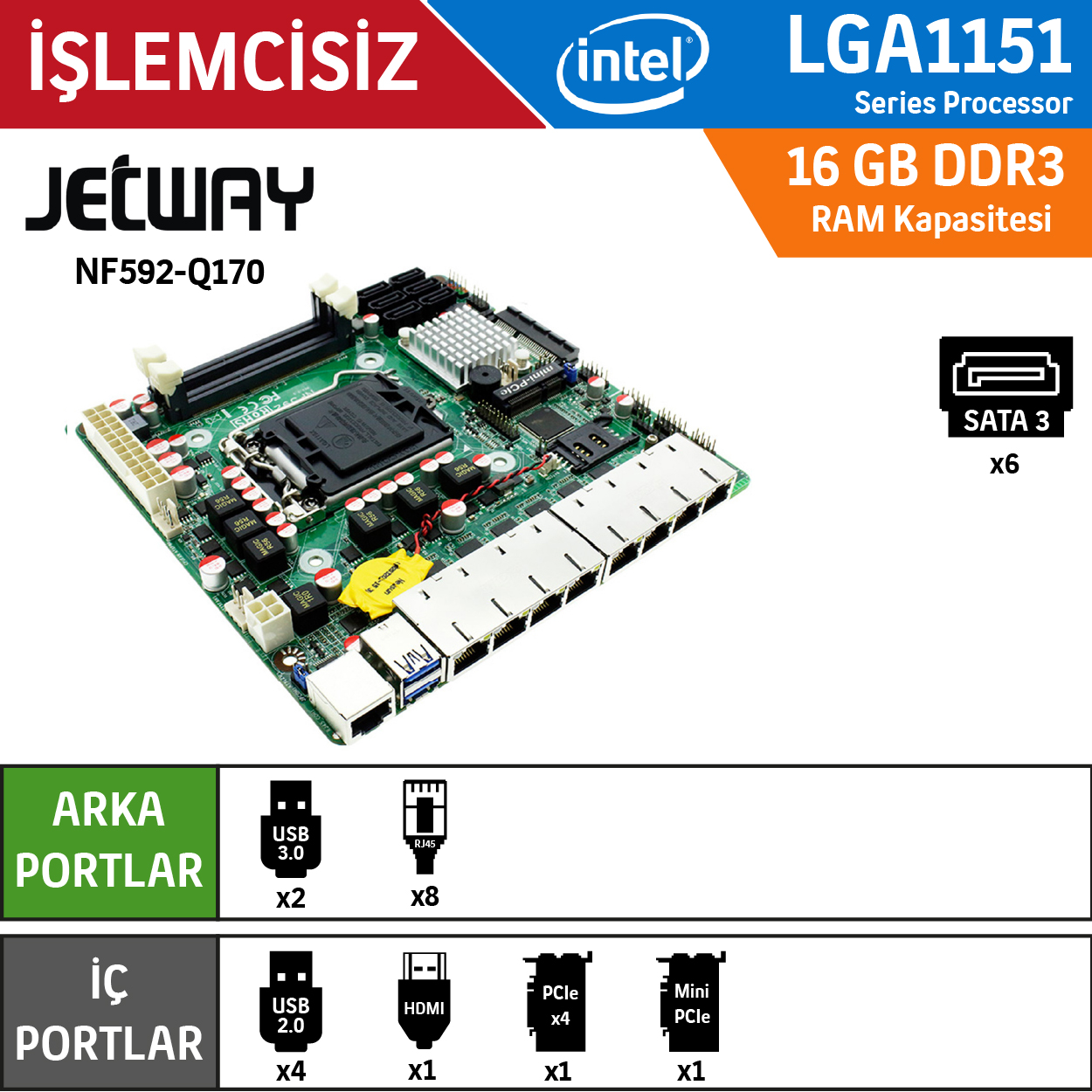

Form Factor
|
|
Dimensions
|
–Slim Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
|
|
Processor System
|
|
CPU
|
– Intel® LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor
– Supports Hyper-Threading Technology
|
|
Core Number
|
– (By CPU)
|
|
Max Speed
|
– (By CPU)
|
|
L2 Cache
|
– ( By CPU)
|
|
Chipset
|
– Intel Q170 Express chipset
|
|
BIOS
|
– AMI 128Mb SMT Flash ROM
|
|
Expansion Slot
|
|
mSATA
|
– 0
|
|
PCIe
|
– 1 * x4 side-slot (4 * PCIex1 combo signal)
|
|
Mini-PCIe
|
– 1 (full size)
|
|
SIM slot
|
– 1
|
|
Memory
|
|
Technology
|
–Dual Channel DDR3L 1600MHz SDRAM
|
|
Max.
|
– 16GB
|
|
Socket
|
– 2 x SO-DIMM
|
|
Graphics
|
|
Controller
|
– Intel®Gen9 Graphics supports DX 11/12, OGL4.3/4.4
|
|
VRAM
|
– Shared Memory
|
|
VGA
|
–0
|
|
LVDS
|
–0
|
|
HDMI
|
– 1* (Internal) HDMI supports up to 4096×2160@24Hz
|
|
MultiDisplay
|
– No
|
|
Ethernet
|
|
Ethernet
|
– 10/100/1000 Mbps
|
|
Controller
|
– Intel i211AT * 7 & i219LM * 1 GbE
|
|
Connector
|
– 8 x RJ45
|
|
SATA
|
|
Max Data Transfer Rate
|
– 6 x SATAIII (6.0Gb/s)
|
|
Rear I/O
|
|
VGA
|
– 0
|
|
HDMI
|
– 0
|
|
Ethernet
|
– 8
|
|
USB
|
– 2 x USB 3.0
|
|
Serial
|
– 1 x RS232 (RJ45 type)
|
|
DC-input
|
– 0
|
|
Internal Connector
|
|
USB
|
–4 x USB 2.0
|
|
LVDS / inverter
|
–0
|
|
HDMI
|
–1
|
|
SATA
|
–6
|
|
mPCIe
|
–1
|
|
mSATA
|
–0
|
|
Chassis intrusion
|
–1
|
|
PS/2
|
–1
|
|
Audio Header
|
–0
|
|
Watchdog Timer
|
|
Output
|
– From Super I/O to drag RESETCON#
|
|
Interval
|
– 256 segments, 0,1,2…255sec/min
|
|
Power Requirements
|
|
Input PWR
|
– ATX PWR (4+24 pin)
|
|
Power On
|
AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Certifications
|
|
Certifications
|
– CE, FCC, RoHS, REACH
|
|
Environment
|
|
Temperature
|
– Operating: 0°C – 60°C
|
|
– Storage:-20°C–85°C
|
