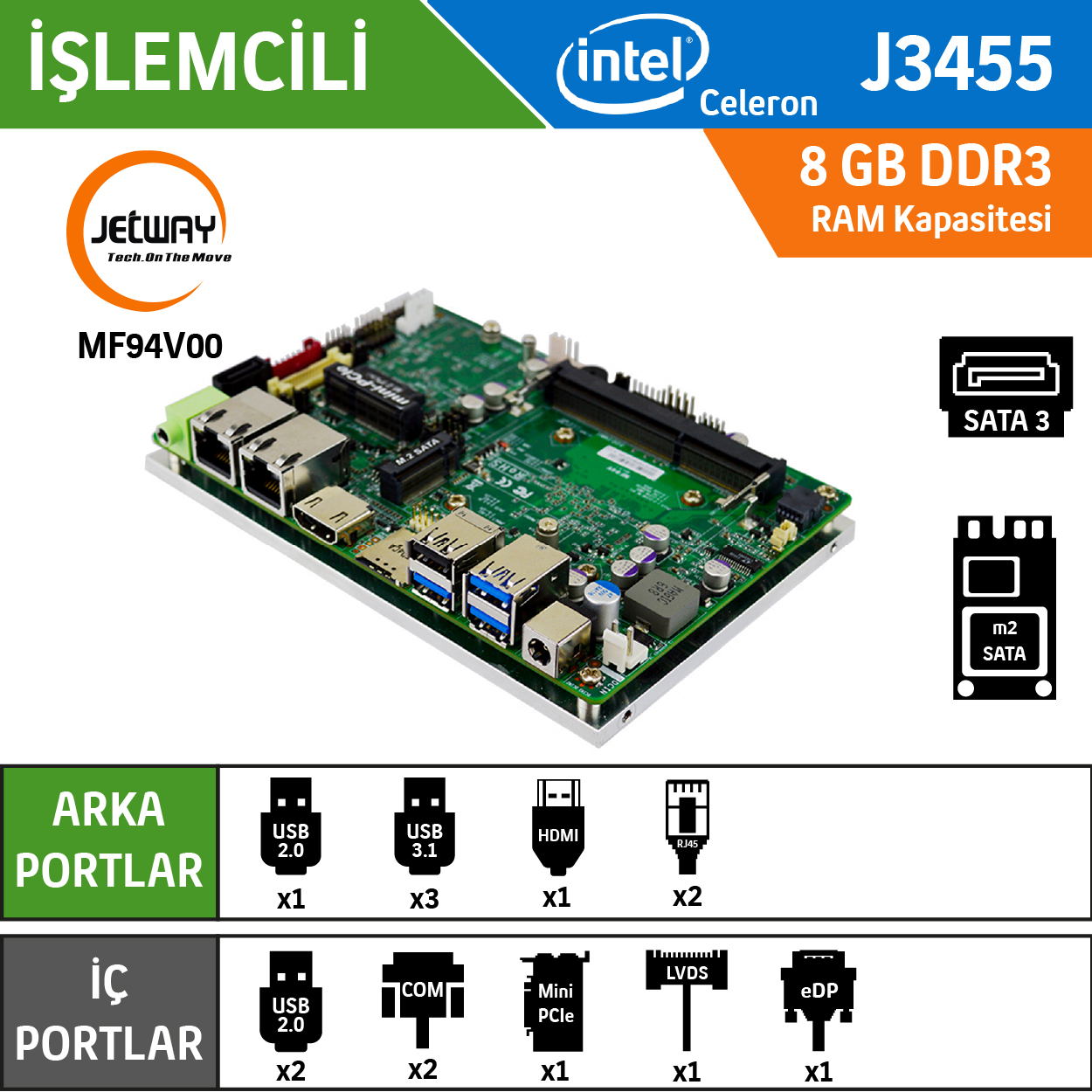

Model
|
– MF94V00 (J3455 CPU_10W, Default)
|
|
Form Factor
|
–3.5” (5.8-in * 4.0-in, 148 * 102mm)
|
|
Processor System
|
– Intel® Apollo Lake J3455 / E3940 SoC Processor (TDP 10W/9.5W)
– AMI Flash ROM BIOS
|
|
Expansion Slot
|
–1* M.2 M-key (2242) Support SATA interface
– 1* M.2 B-key (3042) Support USB3.0 & PCIex1 interface W/SIM card holder
– 1* Full size Mini-PCIe Support USB2.0 & PCIex1 interface
|
|
Memory
|
– 1* SO-DIMM DDR3L 1866MHz SDRAM non-ECC up to 8GB
|
|
Graphics
|
– Intel® HD Graphics, shared memory
– 1* eDP1.3 (Max Resolution: 3840×2160@60Hz)
– 1* LVDS (Max Resolution: 1920 x 1080@60Hz)
– 1* HDMI (Max Resolution: 3840×2160@ 30 Hz)
|
|
Ethernet
|
–2* Intel® 2.5GbE (2* i225-V)
|
|
Audio
|
– 6 channel HD audio: Realtek® ALC662/ALC888S
|
|
Storage
|
–1* SATAIII
|
|
Rear I/O
|
–3* USB3.1 (Gen1)
– 1* USB2.0
– 1* HDMI
– 2* RJ45
– 1* SIM card slot (W/M.2 B-key, 3042)
– Line-Out
– DC-in (9~36V)
|
|
Internal Connector
|
–2* USB2.0
– 1* eDP
– 1* LVDS w/ Inverter
– 1* RS232
– 1* RS232/422/485
– 1* SATAIII
– 1* GPIO (8 bit)
– 1* Audio Header
– 1* SMBUS
– 1* I2C
– 1* CPU FAN
– 1* TPM2.0 onboard (option)
|
|
Watchdog Timer
|
–From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
|
Power
|
DC-IN 9~36V
AT/ATX mode Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Compliance
|
–CE, FCC, LVD, RoHS, REACH
|
|
Temperature
|
– Operating:
MF94V00: 0°C ~ 60°C
MF94V90: -40°C ~ 85°C
– Storage: -40°C ~ 85°C
– Humidity | 10% ~ 90% RH @40°C (non-condensing)
|
|
Warranty
|
– 2 Years Limited Warranty
|
