Form Factor
|
|
Dimensions
|

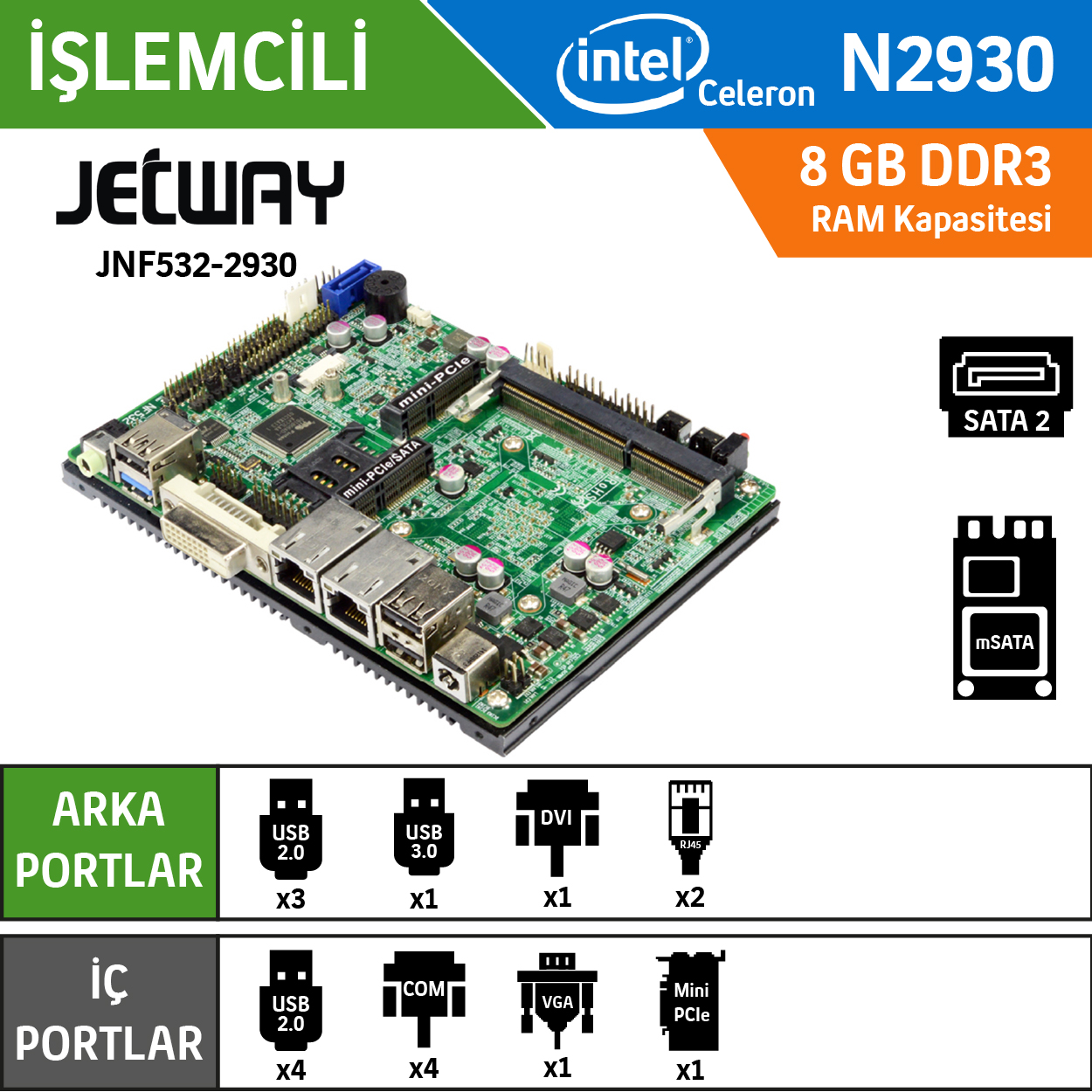

– 3.5” SBC (148X102 mm)
|
|
Processor System
|
|
CPU
|
– Intel® Bay Trail N2930 SoC Processor
|
|
Core Number
|
– 4
|
|
Max Speed
|
– 2.16GHz
|
|
L2 Cache
|
– 2MB
|
|
Chipset
|
– SoC
|
|
BIOS
|
– AMI64MbFlashROM
|
|
Expansion Slot
|
|
Mini-PCIe
|
– 1(fullsize,sharedwithmSATA)+1(halfsize)
|
|
mSATA
|
– 1(sharedwithfullsizeMiniPCIe)
|
|
Memory
|
|
Technology
|
– DDR3L 1333MHz SDRAM
|
|
Max.
|
– 8GB
|
|
Socket
|
– 1*SO-DIMM
|
|
Graphics
|
|
Controller
|
– Intel®HDGraphics
|
|
VRAM
|
– SharedMemory
|
|
VGA
|
– 1 (internal, Max. Resolution: 1920×1080@60Hz)
|
|
DVI-D
|
– 1 (Max. Resolution: 1920 * 1200@60Hz)
|
|
MultiDisplay
|
–Yes(DualDisplay)
|
|
Ethernet
|
|
Ethernet
|
– 10/100/1000Mbps
|
|
Controller
|
– Realtek RTL8111G GbE
|
|
Connector
|
– 2 * RJ45
|
|
SATA
|
|
Max Data Transfer Rate
|
– 1*SATAII(3.0Gb/s)
|
|
RearI/O
|
|
DVI‐D
|
– 1
|
|
Ethernet
|
– 2
|
|
USB
|
– 4(3*USB2.0+1*USB3.0)
|
|
Audio
|
– 1(Line-out)
|
|
DC‐input
|
– 1
|
|
InternalConnector
|
|
USB
|
– 4 ( 4 * USB 2.0)
|
|
PS/2
|
–1
|
|
VGA
|
– 1
|
|
Serial
|
– 4(3*RS‐232,1*RS232/422/485with5V/12Vselectableheader)
|
|
SATA
|
–1*SATAII(3.0Gb/s)
|
|
mPCIe
|
– 1(fullsize,sharedwithmSATA)+1(halfsize)
|
|
mSATA
|
–1(sharedwithmPCIe)
|
|
SIMcardholder
|
– 1
|
|
GPIO8‐bit
|
– 4-in / 4-out
|
|
Chassisintrusion
|
‐ 1
|
|
AudioHeader
|
– 1 (Line-out & MIC)
|
|
HDMI‐SPDIF
|
– 1
|
|
SMBUS
|
– 1
|
|
ATmodejumper
|
– 1
|
|
WatchdogTimer
|
|
Output
|
– FromSuperI/OtodragRESETCON#
|
|
Interval
|
– 256segments,0,1,2…255sec/min
|
|
Power Requirements
|
|
Input PWR
|
–+9~24VDC‐In(2‐pinPWRCon)
|
|
Power On
|
AT/ATXSupported
‐ AT: Directly PWR on as Power input ready
‐ATX:PressButtontoPWRonafterPowerinputready
|
|
Certifications
|
|
Certifications
|
–CE,FCC,RoHS,REACH
|
|
Environment
|
|
Temperature
|
– Operating: -20°C ~ 60°C
– Storage: -40°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
