Model
|
|
Model
|

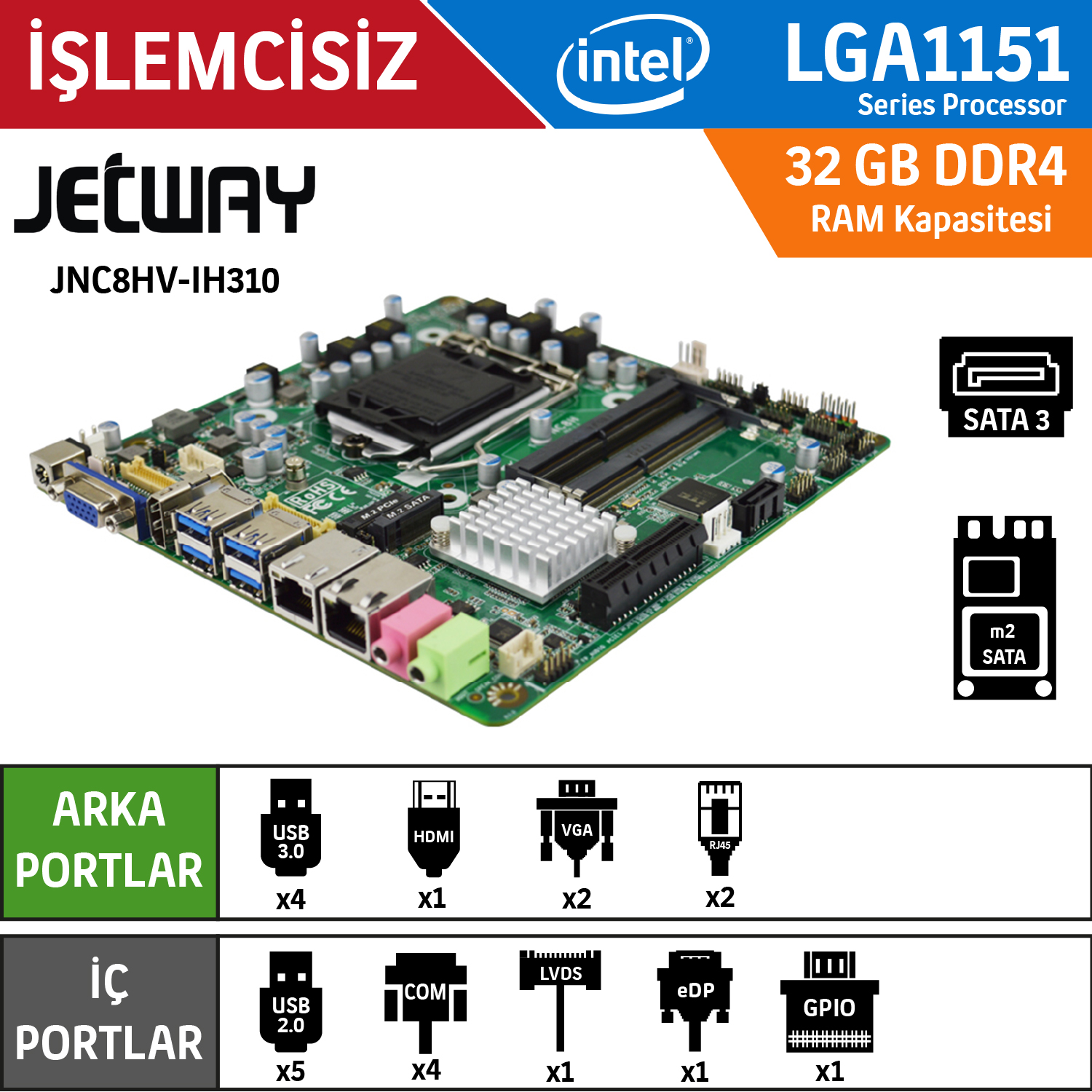

– JNC8H-IH310
|
|
Part Number
|
– JNC8H-IH310
|
|
Form Factor
|
|
Dimensions
|
– Thin Mini ITX ( 170 * 170mm)
|
|
Processor System
|
|
CPU
|
– Intel®LGA1151 Series Processor (Max. 65W)
|
|
Core Number
|
– (By CPU)
|
|
Max Speed
|
– (By CPU)
|
|
L2 Cache
|
– (By CPU)
|
|
Chipset
|
– H310
|
|
BIOS
|
– AMI 128M Flash ROM
|
|
Expansion Slot
|
|
M.2
|
– 1* E key 2230,Support CNVi
– 1* M Key 2242
|
|
SATA
|
– 1
|
|
PCIe
|
– 1 (PCIe x4 slot)
|
|
Memory
|
|
Technology
|
– Single channel DDR4 2133MHz DRAM
|
|
Max.
|
– 64GB
|
|
Socket
|
– 2 * SO-DIMM
|
|
Graphics
|
|
Controller
|
– Intel® HD Graphics
|
|
VRAM
|
– Shared Memory
|
|
VGA
|
– 1 (Max. Resolution: 1920×1200@60Hz)
|
|
LVDS
|
– 1 (Co-lay eDP, Max. Resolution: 1920×1080@60Hz)
|
|
eDP 1.3
|
– 1 (Co-lay LVDS, Max. Resolution: 4096×2304@60Hz)
|
|
HDMI 1.4
|
– 1 (Max. Resolution | 4096×2160@30Hz)
|
|
Multi Display
|
– Dual Display
|
|
Ethernet
|
|
Ethernet
|
– 10/100/1000 Mbps
|
|
Controller
|
– Intel® I219-V + i211AT Gigabit LAN
|
|
Connector
|
– 2* RJ 45
|
|
Audio
|
|
CODEC
|
– HD Audio: Realtek ALC662VD
|
|
Channel
|
– Line-Out, MIC
|
|
SATA
|
|
Max Data Transfer Rate
|
– 1* SATAIII (6.0Gb/s)
|
|
Rear I/O
|
|
VGA
|
– 1
|
|
HDMI
|
– 1
|
|
Ethernet
|
– 2
|
|
USB
|
– 4* USB 3.0
|
|
Audio
|
– 1 (Line-out, MIC)
|
|
DC-input
|
– 1
|
|
Internal Connector
|
|
USB
|
– 5 (USB 2.0)
|
|
PS/2
|
– 1
|
|
LVDS / inverter
|
– 1 (Co-lay eDP )
|
|
eDP
|
– 1
|
|
Serial
|
– 4 (COM1/2 Support 5V/12V TTL)
|
|
SATA
|
– 1* SATAIII (6.0Gb/s)
|
|
M.2
|
–2 (M key + E key)
|
|
GPIO
|
– 1 (8 bit)
|
|
Chassis intrusion
|
– 1
|
|
Audio Header
|
– 1
|
|
SMBUS/ I2C
|
– 1
|
|
AT mode
|
– 1
|
|
Watchdog Timer
|
|
Output
|
– From Super I/O to drag RESETCON#
|
|
Interval
|
– 256 segments (10sec ~ 255min)
|
|
Power Requirements
|
|
Input PWR
|
– 12 ~ 24V DC-in
|
|
Power On
|
AT/ATX Supported
– AT | Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Certifications
|
|
Certifications
|
– CE, FCC, RoHS, REACH
|
|
Environment
|
|
Temperature
|
– Operating: 0°C ~ 60°C
|
|
– Storage:-20°C ~ 85°C
|
|
Warranty
|
|
Warranty
|
– 2 Years Limited Warranty
|
