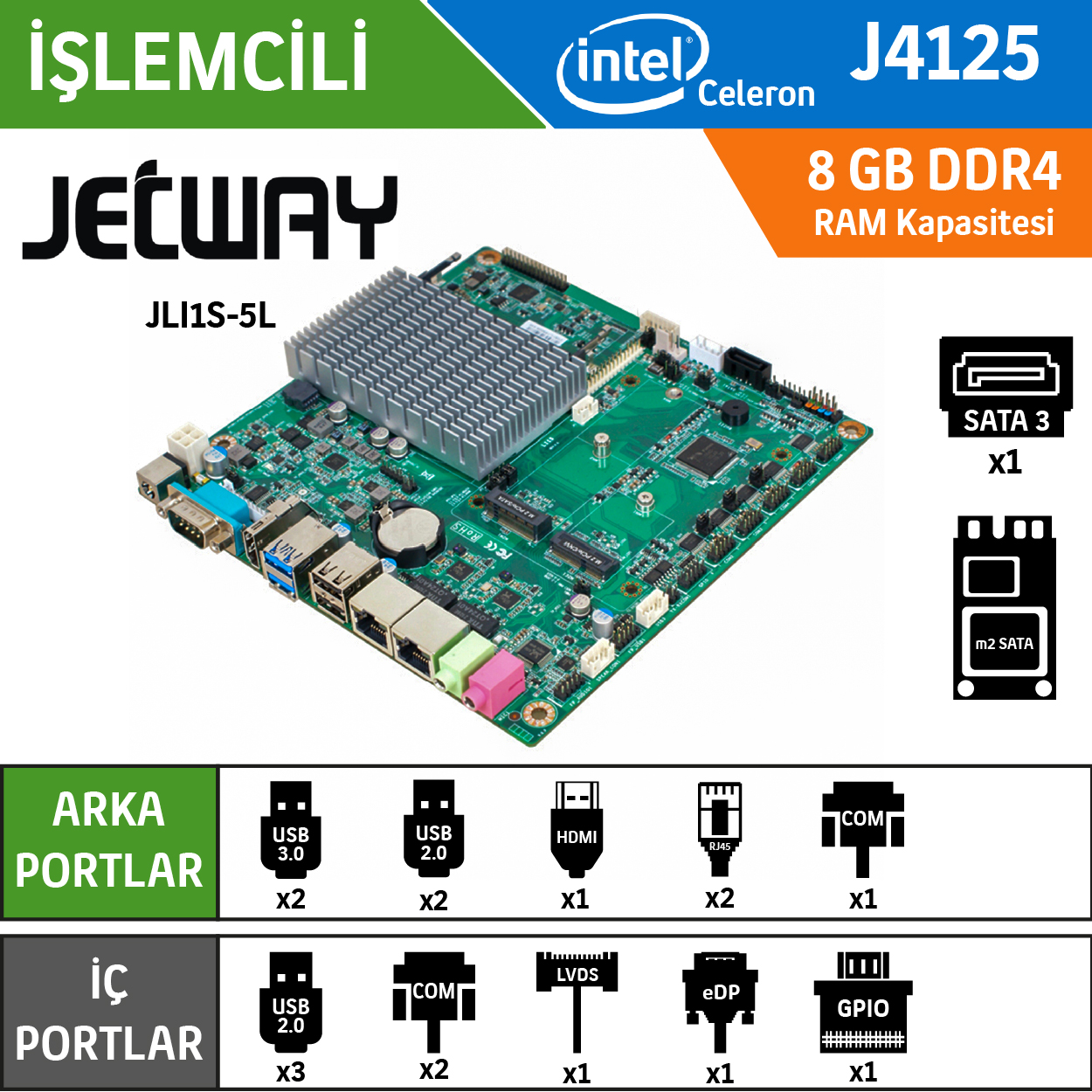

Model
|
– JLI1S-5L
|
|
Form Factor
|
–Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
|
|
Processor System
|
– Intel® Gemini Lake J4125 2.0GHz/QC Core MCP Processor (10W, Turbo 2.7GHz)
– Intel J4125 SoC chipset
– AMI 128Mb Flash ROM BIOS
|
|
Expansion Slot
|
–1* M.2 E-key (2230, support WIFI/BT Module)
|
|
Memory
|
– 1* DDR4 2400MHz SDRAM SO-DIMM up to 8GB
|
|
Graphics
|
– Intel® 600 series Graphics, shared memory
– 1* HDMI1.4 (Max Resolution | 3840×2160@24Hz, Co-lay VGA)
– 1* LVDS (Max Resolution | 2560×1600@60Hz, Co-lay eDP)
– 1* eDP (Max Resolution | 3840×2160@60Hz)
– Support Triple Displays
|
|
Ethernet
|
–2* Realtek® RTL8119I GbE
|
|
Audio
|
– Realtek HD audio
– 3W speaker amplifier
|
|
Storage
|
–1* SATAIII (6Gb/s)
– 1* M.2 M-key (2242/2280, SATA or NVMe PCIex2)
|
|
Rear I/O
|
–1* HDMI
– 1* RS232
– 2* RJ45
– 2* USB3.0
– 2* USB2.0
– Line-out/MIC
– 12V DC-in
|
|
Internal Connector
|
–3* USB2.0
– 2* RS232/485
– 2* RS232
– 1* SATAIII
– 1* SATA power
– 2* M.2 (1* M-key, 1* E-key)
– 8bit GPIO (5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_Audio
– 1* speaker
– 1* CPU Fan (W/O Smart FAN)
|
|
Watchdog Timer
|
–From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
|
|
Power
|
12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Compliance
|
–CE, FCC, RoHS, REACH
|
|
Temperature
|
– Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
|
|
OS Support
|
–Windows 10, Linux
|
|
Warranty
|
– 2 Years Limited Warranty
|
