Multiple Network Connectivities

Support Wi-Fi or Ethernet to connect the Internet and can access the world standard MQTT (SSL & Proxy)/HTTP (SSL/TLS)/TCP/UDP network Server such as AWS/Azure/Google/Alibaba IoT Cloud platforms.

Simple Operation and Easy Deployment

Easy to install and provides a variety of power modes to ensure that you can use it in a variety of situations.
The friendly Web GUI console and remote Cloud Management facilitate to configure the Gateway and achieve your IoT application quickly.

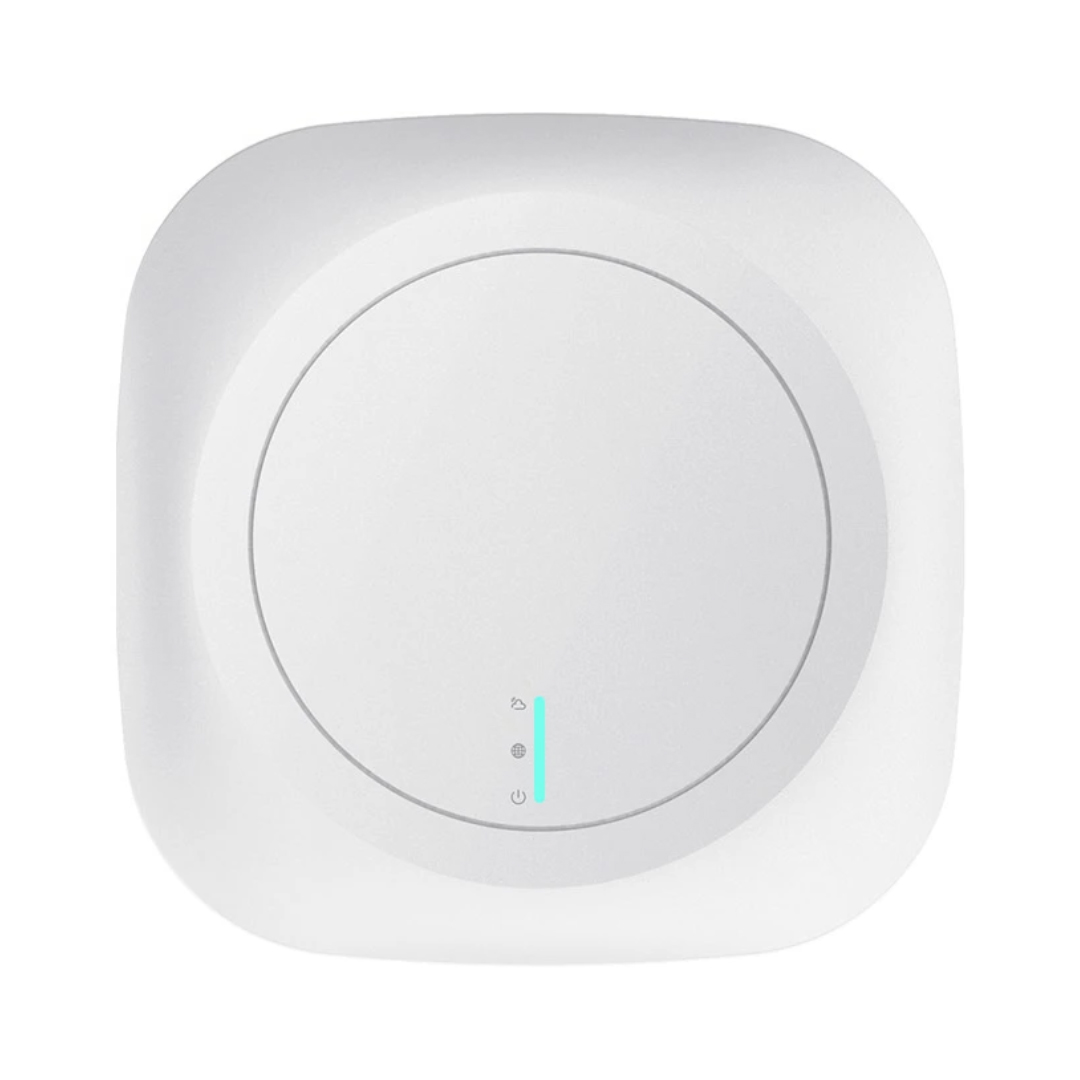

MKGW1-BW Pro Bluetooth Gateway

SMART Configuration
Web GUI - Gateway user interface
Cloud management

Filter Beacon packets
By RSSI/ MAC address/ BLE name/ raw data

Bluetooth scanning filter logic
Regular expression

Parse Beacon protocols
Apple iBeacon
Google Eddystone - UID, URL, TLM
MOKO Beacon

Beacon data format
JSON array/ Hexadecimal

Offline storage
Store Beacon packets on a USB flash drive

BLE connection
Auto PHY and up to 8 BLE peripherals can be connected

Power Supply
Micro USB: 5V/ 1A
DC Port: 9-12V/ 1A
PoE: IEEE 802.3af

GENERAL/DESIGN
Dimensions: 120 x 120 x 22.5 mm
Weight: 136g
Material: ABS-FR
Color: White
Installation: Horizontal, wall or ceiling mount
Protection rating: IP20, UL94 V0
Operating temperature: -20°C to 45°C
Storage temperature: -40°C to 70°C
Humidity: Maximum 95% non-condensing RH

CONNECTIVITY
Bluetooth: Nordic nRF52833 Cortex-M4F, Bluetooth 5.0 - 1M, 2M, Coded PHY
Wi-Fi: IEEE 802.11 b/g/n, 1T1R with 150Mbps PHY
RF antenna: Bluetooth 2.4GHz 4.2dBi FPC antenna, Wi-Fi 2.4GHz 5dBi FPC antenna
Internet connection: WLAN/Ethernet
Network failover: Yes

Server access
MQTT (SSL/TLS, socks5 proxy)
HTTP (SSL/TLS)
TCP/UDP

Certifications
Regulatory: USA (FCC), Europe (CE, REACH, RoHS)
Customization: All worldwide certifications can be customized
