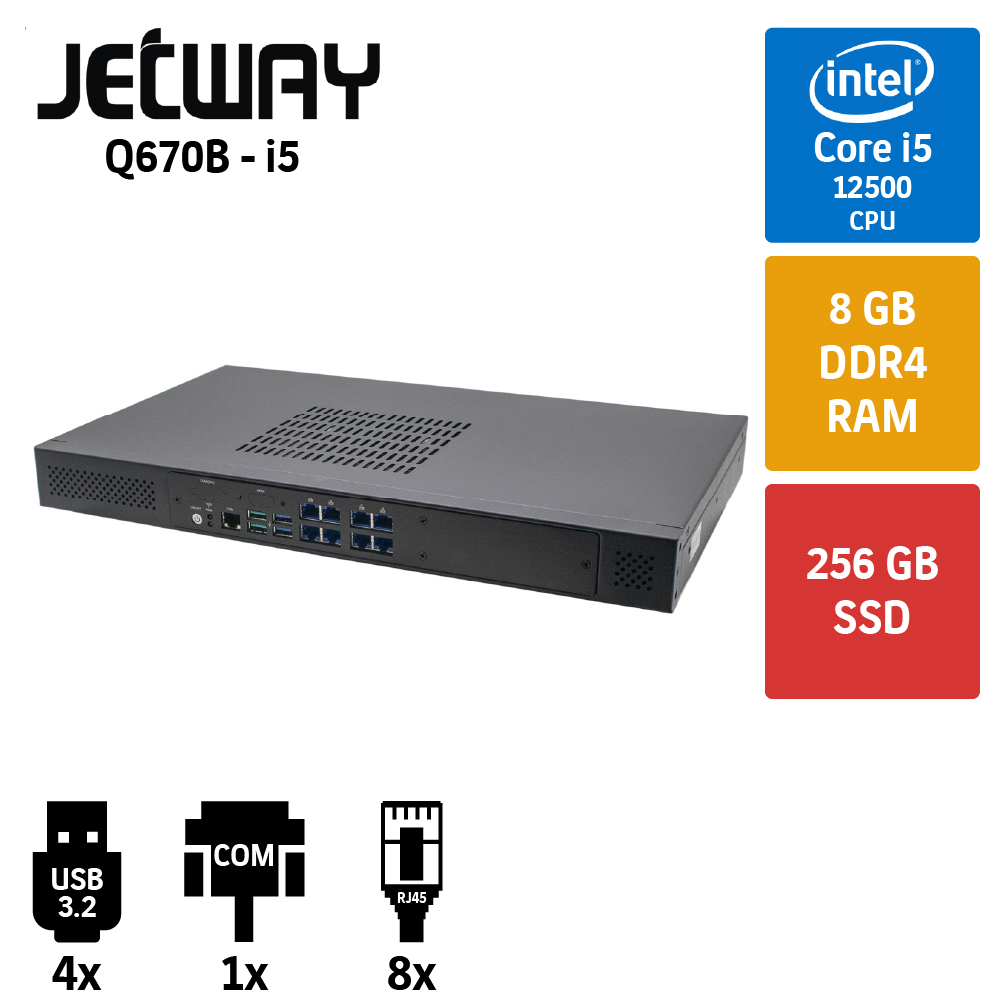

| SYSTEM |
| MB FORM FACTOR |
Mini-ITX |
| CPU |
Intel® LGA1700 12/13/14th Gen Socket Processor (Formerly Alder Lake-S, TDP 65W)
For additional compatible CPUs, please contact regional sales |
| CHIPSET |
Intel® Q670E |
| MEMORY |
2 x Intel® 12th/13th/14th CPU supports DDR5 4800MHz Dual Channel SO-DIMM, up to 96GB max
2 x Intel® 13th/14th CPU supports DDR5 5600MHz Dual Channel SO-DIMM, up to 64GB max |
| BIOS |
AMI Flash ROM |
| WAKE ON LAN |
Yes |
| WATCHDOG TIMER |
255 Levels |
| SECURITY |
TPM2.0 |
| RTC BATTERY |
Lithium Battery |
| OS SUPPORT |
Windows® 11 (64bit)
Linux |
| POWER |
| POWER REQUIREMENT |
1U FLEX 400W ATX PWR (4+24 pin)
MB | ATX Power Input (24pin ATX + 4pin 12V) |
| POWER ON MODE |
ATX (Default) Mode |
| DISPLAY |
| GPU |
Intel® UHD Graphics, shared memory |
| HDMI |
1 x HDMI (Max Resolution: 1920 x 1080@60Hz) |
| LAN |
| ETHERNET |
7 x RJ45 for Intel® i225-V 2.5GbE
1 x RJ45 for Intel® i225-LM 2.5GbE |
| SYSTEM I/O |
| REAR PANEL I/O |
AC input CON
Power on/off SW |
| FRONT PANEL I/O |
8 x RJ45
2 x USB 3.2(Gen.2)
2 x USB3.2 (Gen.1)
1 x RS-232
1 x HDMI
1 x Alarm LED
1 x Power LED
1 x Power Switch |
| STORAGE |
| SATA |
2 x 2.5" SATA 6Gb/s internal drive bay (only Support 2.5" HDD with a hight ≤ 10mm) |
| EXPANSION |
| M.2 |
1 x M-key 2242/2280 (PCIe Gen.4×4 w/SATA interface)
1 x M-key 2280 (PCIe Gen.4×4 w/SATA interface) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVi
1 x B-key 3042 (USB3.2 Gen.1/USB2.0/PCIe x1 interface) support 4G Module |
| PCIE |
1 x PCIE x4 |
| SIM |
1 x SIM Card Slot |
| MECHANICAL |
| DIMENSIONS (W x D x H) |
430.0 (W) x 252.0 (D) x 44.0 (H) mm |
| ENVIRONMENT & CERTIFICATION |
| SHOCK |
15G, 11ms duration |
| VIBRATION |
1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE |
0°C ~ 50°C (32°F ~ 122°F) |
| STORAGE TEMPERATURE |
-40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY |
10 ~ 95% @ 40°C, Non-condensing |
| CERTIFICATION |
CE/FCC Class A
LVD |
| ESG DECLARATION |
EU RoHS
China RoHS
ErP |
