Model
|

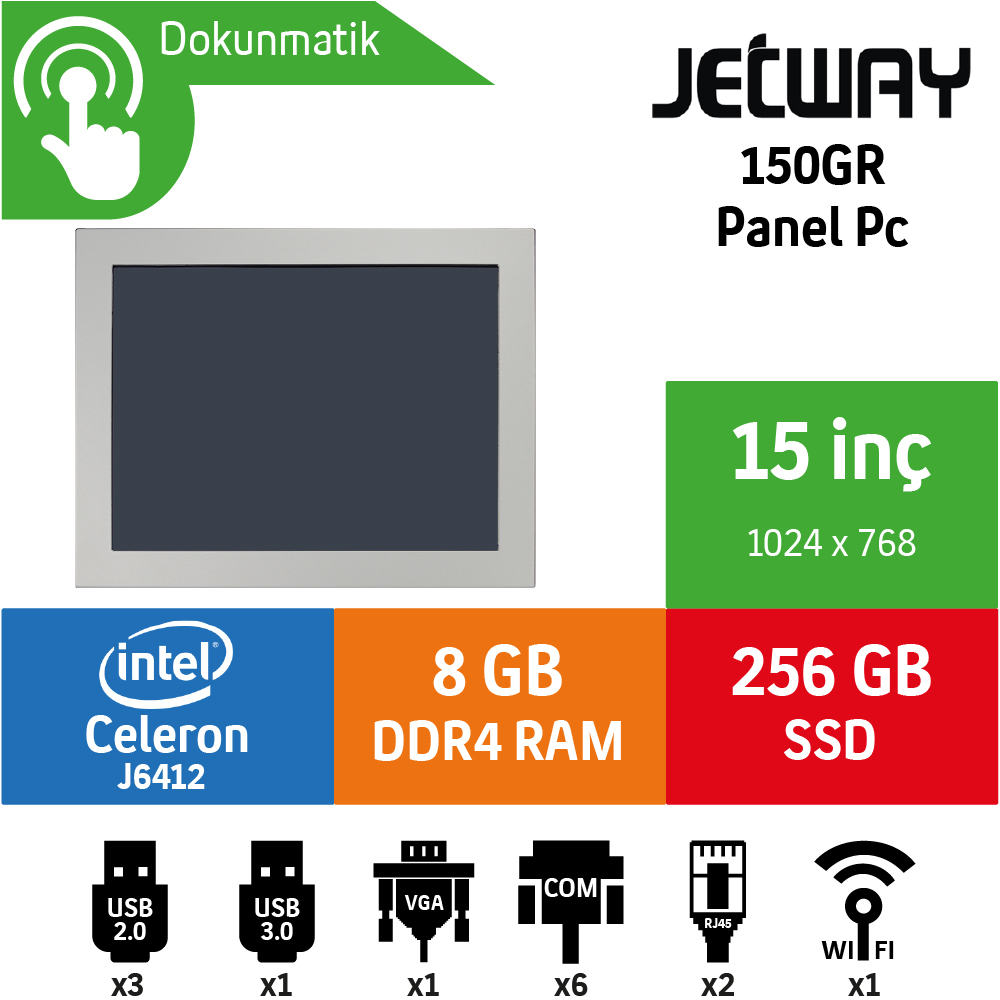

– HPC150GR-HD6412
|
|
Main System
|
– Intel® Elkhart Lake J6412 2.0GHz/QC processor
– DDR4-3200MHz SO-DIMM up to 32GB
– 128MB SPI Flash ROM BIOS
– 2* 3W/8Ω speaker
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/ 11 / Linux (Option)
|
|
Display
|
– IP65, NEMA 4 rugged protection, metal front bezel
– 15.0″ With LED Backlight
– 350nits Brightness (cd/m²)
– 262K display color
– 1024 x 768 @ 60Hz
– 170°/160° viewing angle (H/V)
– 0.297 x 0.297mm pixel pitch
– 4:3 aspect ratio
– 700:1 contrast ratio
– 5.7ms response time
|
|
Touch Screen
|
– 5 wires analog resistive type
– 304.10 x 228.10mm ±0.2mm
– Operating Force ≦ 80g
– Transparency 80 ±3%
– Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
– 10,000,000 times keystrokes
|
|
I/O Connector
|
– 2* USB3.2 (Gen1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* HDMI2.0 (Max Resolution: 3840 x 2160@60Hz)
– 1* 8bit GPIO
– 2* Intel® i225-V 2.5GbE
– 1* Locking Jack 9~28V DC input
– 1* Power button
|
|
Storage
|
– 1* 2.5” SATA bay
– 1* M.2 M key (2242/2280, SATA/NVMe)
|
|
Expansion
|
– 1* M.2 E-key (2230 for WIFI/BT Module)
– 1* M.2 B-key (3042/3052 for 4G/5G Module)
|
|
Case
|
– Aluminum panel
– Iron case
– Silver + White color
– Spray paint coating requirement
|
|
Power
|
– AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 39.5W
|
|
Compliance
|
– CE, FCC, IP65 (Front)
|
|
Safety
|
– Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms
|
|
Dimensions
|
– 366 x 290 x 74mm
|
|
Temperature
|
– Operating: 0°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: 0°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~70°C
|
|
Warranty
|
– 2 Years Limited Warranty (Panel is 1 Year Warranty only)
|
