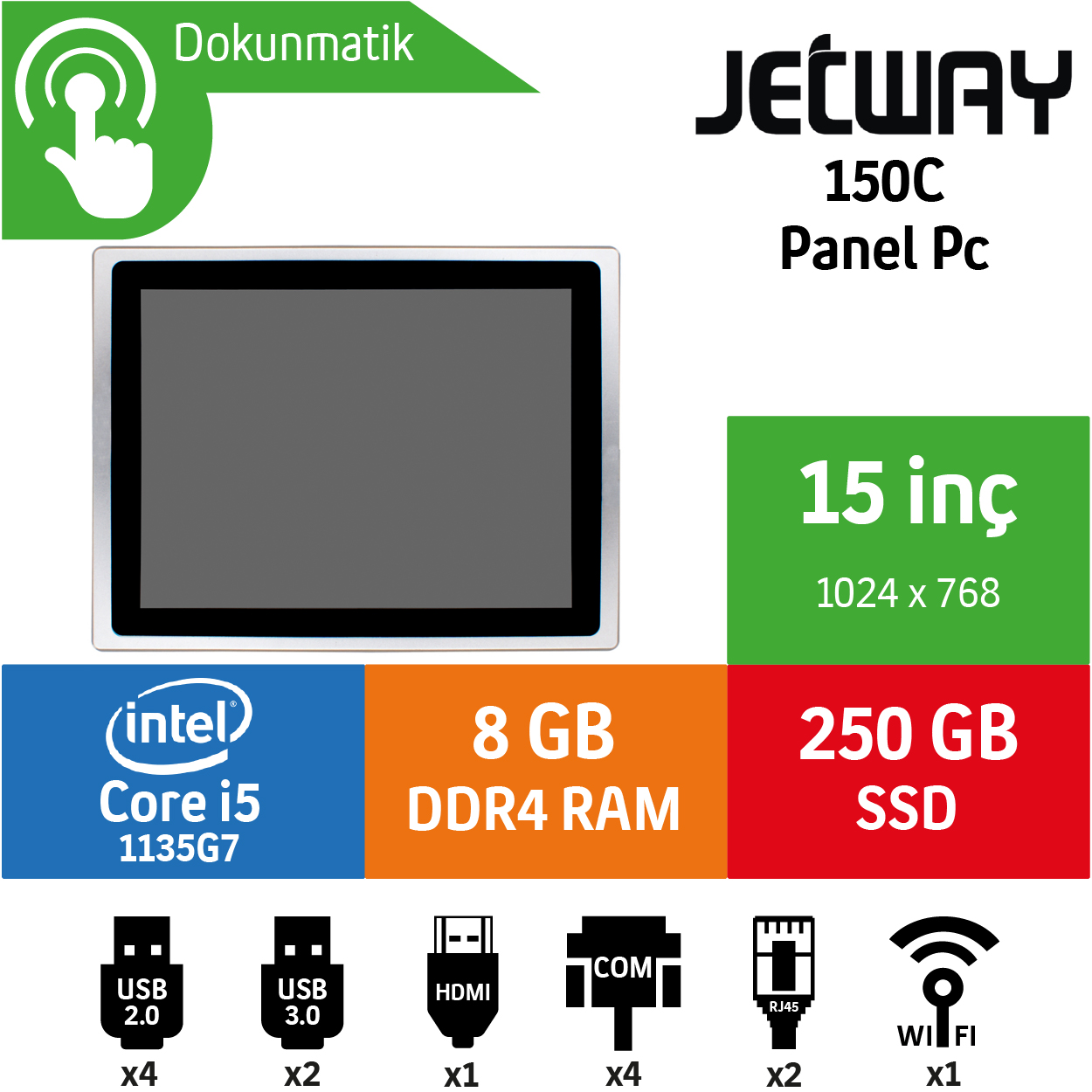

Display
|
– IP65, NEMA 4 rugged protection, metal front bezel
– 15.0″ With LED Backlight
– 350 nits
– 16.7m display color
– 1024 x 768 @60Hz resolution
– 178°/178° viewing angle (H/V)
– 0.099 x 0.297mm pixel pitch
– 4:3 aspect ratio
– 1000:1 contrast ratio
– 35ms response time
|
|
Touch Screen
|
– Projected capacitive type
– 336.3 x 260.6mm ±0.3mm active range
– Transparency ≧85%
– Surface Hardness ≧6H (JIS-5400)
|
|
Case
|
– Aluminum panel
– Iron case
– White color
– Spray paint coating requirement
|
|
Main System
|
– Intel® Tiger Lake i5-1135G7 2.4GHz/QC processor
– 2* DDR4 SO-DIMM (Max 64GB)
– 256MB SPI Flash ROM
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10 / Linux
|
|
Storage
|
– 1* 2.5” SATA HDD
– 1* M.2 M key (2242/2280, PCI-Ex4)
|
|
Expansion
|
– 1* M.2 E key (2230) for WIFI
– 1* M.2 B key (3042/3052/6570) for 4G/5G Module (4pcs Built in Antenna)
|
|
I/O Connector
|
– 2* USB3.2 (Gen. 1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232 (option 16bit GPIO)
– 1* HDMI
– 1* AT/ATX Mode Button
– 2* RJ45 (1* Intel® I225-V 2.5GbE, 1* Intel® I219LM GbE)
– 1* 12~36V DC-in Locking Jack
– 1* Power button
– 1* 2pin Front Power button
|
|
Power Input
|
– AC version: 100~240V AC-DC 90W power adapter or
– DC version: 12VDC with over current protection fuse
|
|
Power Consumption
|
– 45W
|
|
Dimensions
|
– 382.3 x 288.6 x 63.1mm
|
|
Compliance
|
– CE, FCC, IP65 (Front), Option
|
|
Safety
|
– Shock: 1ms duration
– Vibration: 5~500Hz/1 Grms
|
|
Temperature
|
– Operating: | -10°C ~ 50°C
– Storage: -20°C ~ 70°C
|
