| SYSTEM |
| MB FORM FACTOR |
Others |
| CPU |
Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W) |
| CHIPSET |
Intel® SoC |
| MEMORY |
1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB |
| BIOS |
AMI Flash ROM |
| WATCHDOG TIMER |
255 Levels |
| SECURITY |
TPM2.0 (Optional) |
| OS SUPPORT |
Windows® 11 (64bit)
Windows® 10 (64bit)
Linux |
| POWER |
| POWER REQUIREMENT |
DC-in 12V |
| POWER ON MODE |
AT / ATX |
| DISPLAY |
| GPU |
Intel® HD Graphics |
| HDMI |
1 x HDMI 2.0 (Max Resolution: 4096 x 2160@60Hz) |
| LAN |
| ETHERNET |
4 x RJ45 for Intel® I226-V 2.5GbE |
| SYSTEM I/O |

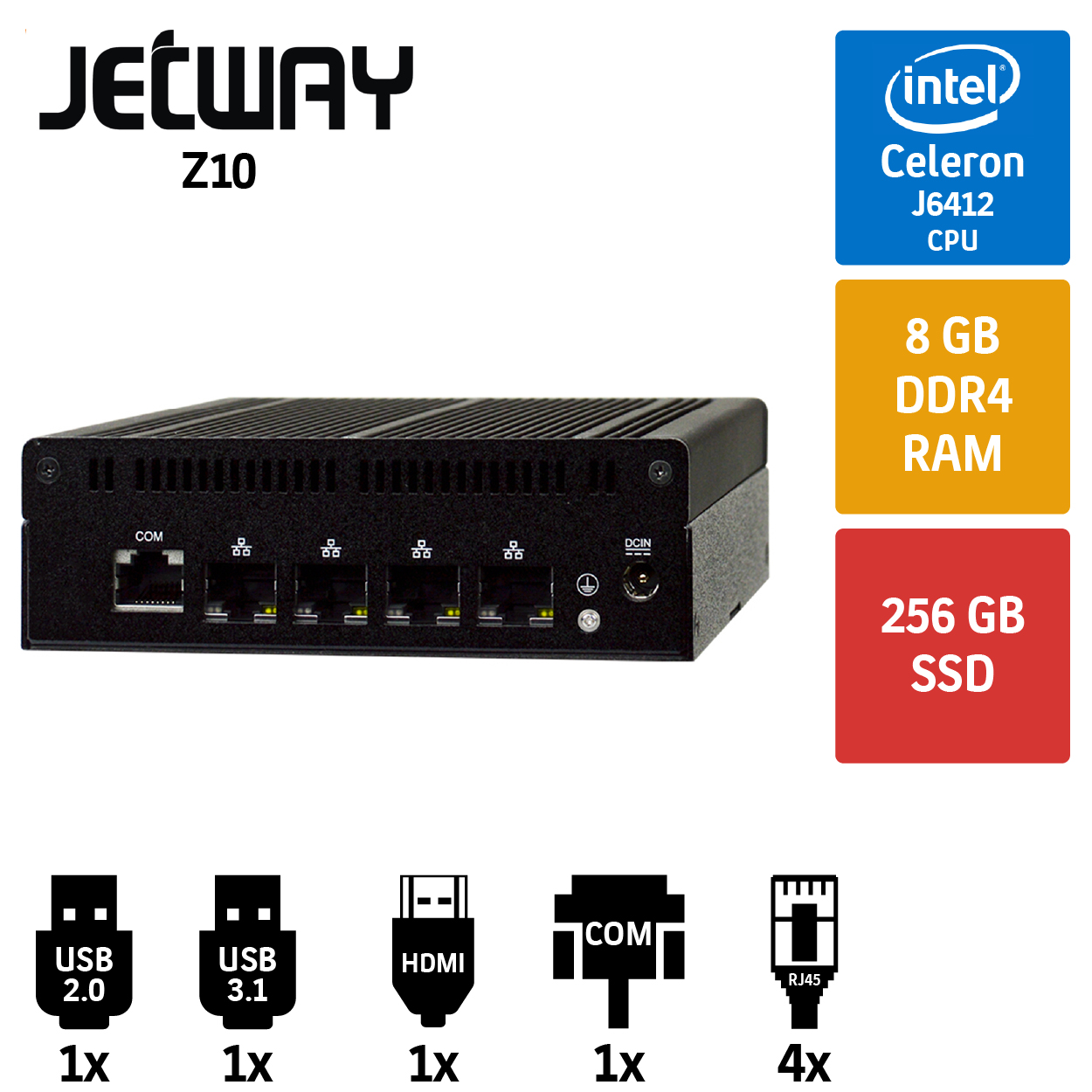

| REAR PANEL I/O |
4 x RJ45
1 x COM (RJ45 Type)
1 x DC-in Jack (12V)
1 x GND Hold
1 x WIFI Antenna Hole |
| FRONT PANEL I/O |
1 x Power Button
1 x Power LED
1 x Reset Button
1 x USB 3.1
1 x USB 2.0
1 x HDMI
1 x WIFI Antenna Hole |
| STORAGE |
| eMMC |
Onboard 64GB eMMC 5.1 (optional) |
| EXPANSION |
| M.2 |
1 x M-Key 2242 (PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-Key)
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
1 x B-Key 3042/3052 (USB3.1 interface) co-layout M.2 M-Key |
| SIM |
1 x SIM Card Slot |
| MECHANICAL |
| MOUNTING |
Wall Mount |
| DIMENSIONS (W x D x H) |
125.0 (W) x 109.2 (D) x 39.5 (H) mm |
| ENVIRONMENT & CERTIFICATION |
| SHOCK |
15G, 11ms duration |
| VIBRATION |
1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE |
-20°C ~ 60°C (-4°F ~ 140°F) |
| STORAGE TEMPERATURE |
-40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY |
10 ~ 95% @ 40°C, Non-condensing |
| STORAGE HUMIDITY |
0 ~ 95% Relative Humidity, Non-condensing |
| CERTIFICATION |
CE/FCC Class A
LVD |
| ESG DECLARATION |
EU RoHS
China RoHS
ErP |
