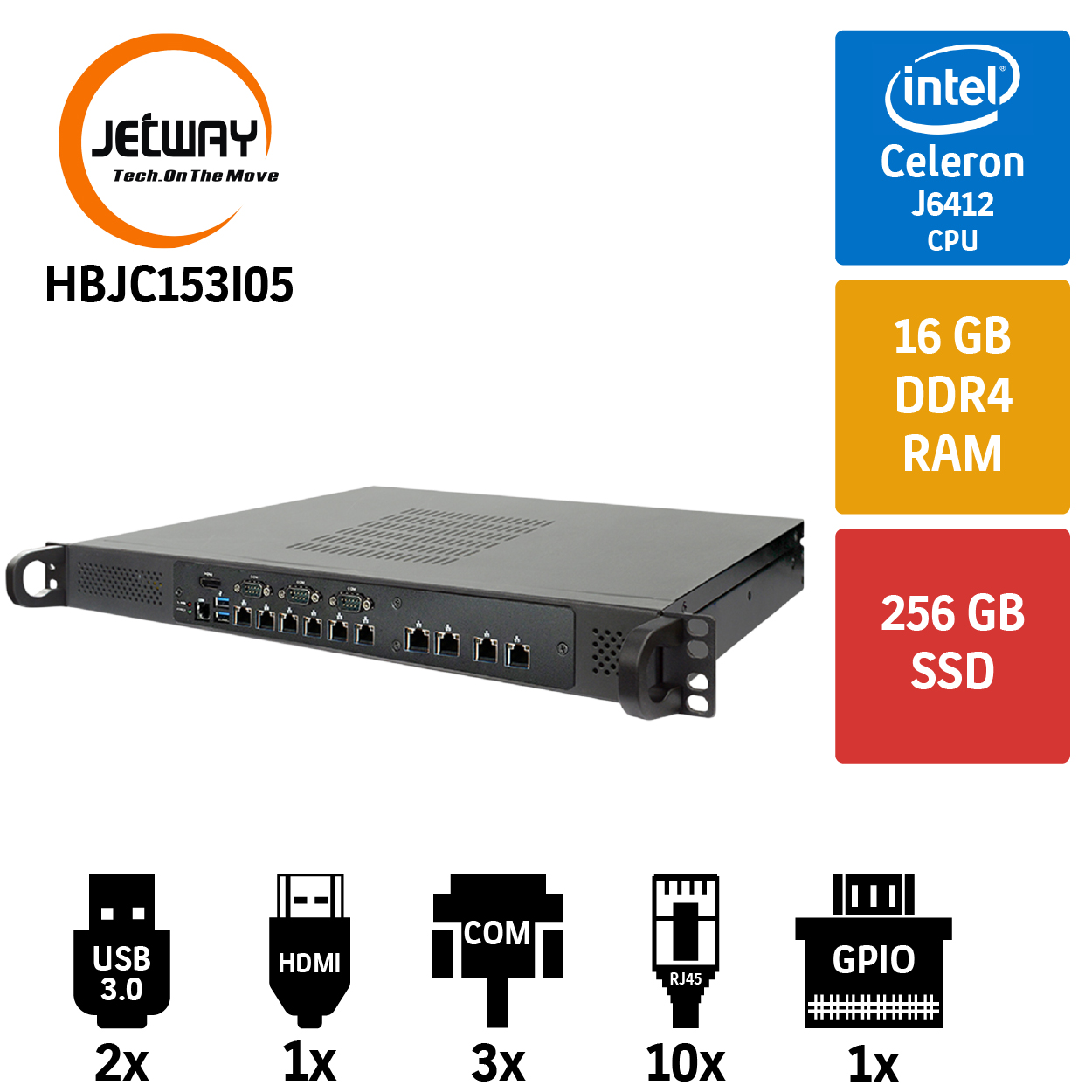

| SYSTEM |
| MB FORM FACTOR |
Mini-ITX |
| CPU |
Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W) |
| CHIPSET |
Intel® SoC |
| MEMORY |
1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB |
| BIOS |
AMI Flash ROM |
| SECURITY |
TPM2.0 (Optional) |
| OS SUPPORT |
Windows® 11 (64bit)
Windows® 10 (64bit)
Linux |
| POWER |
| POWER REQUIREMENT |
DC-in 12V |
| DISPLAY |
| GPU |
Intel® HD Graphics |
| HDMI |
1 x HDMI (Max Resolution: 1920 x 1080@60Hz) |
| LAN |
| ETHERNET |
6 x RJ45 for Intel® I226-V 2.5GbE
Optional 4 x RJ45 (LAN Card or ByPass LAN Card) |
| SYSTEM I/O |
| REAR PANEL I/O |
AC input CON
Power on/off SW |
| FRONT PANEL I/O |
6 x LAN (MB)
4 x LAN (Expansion PCIE 4 x Lan Card)
1 x HDMI
1 x RS-232/422/485
1 x RS-232
1 x USB 3.1
1 x USB 2.0
1 x Power LED, 1 x Alarm LED
1 x GPIO |
| STORAGE |
| SATA |
1 x 2.5” SATA Device (support 2.5” HDD with a height ≤ 10mm) |
| eMMC |
Onboard 64GB eMMC 5.1 (optional) |
| EXPANSION |
| M.2 |
1 x M-key 2242 (SATA/PCIe Gen.3 x2 interface) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)
1 x B-key 3042 (USB3.1 interface) |
| SIM |
1 x SIM Card Slot |
| MECHANICAL |
| DIMENSIONS (W x D x H) |
430.0 (W) x 252.0 (D) x 44.0 (H) mm |
| ENVIRONMENT & CERTIFICATION |
| SHOCK |
15G, 11ms duration |
| VIBRATION |
1 Grms/ 5~ 500Hz/ Operation |
| OPERATING TEMPERATURE |
0°C ~ 50°C (32°F ~ 122°F) |
| STORAGE TEMPERATURE |
-40°C ~ 85°C (-40°F ~ 185°F) |
| OPERATING HUMIDITY |
10 ~ 95% @ 40°C, Non-condensing |
| CERTIFICATION |
CE/FCC Class A |
| ESG DECLARATION |
EU RoHS
China RoHS
ErP |
