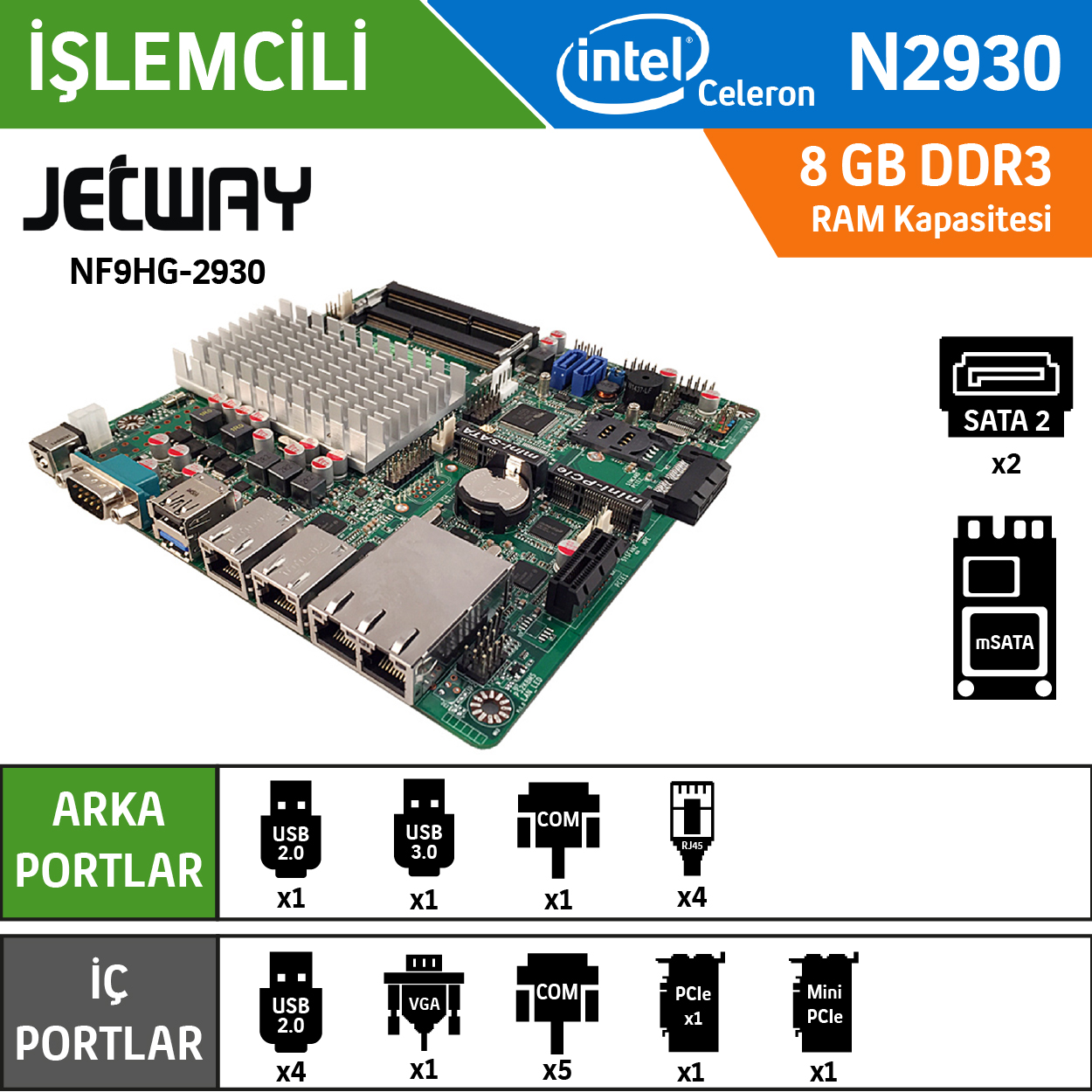

Form Factor
|
|
Dimensions
|
– Slim Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
|
|
Processor System
|
|
CPU
|
– Intel® Bay Trail N2930 SoC Processor
|
|
Core Number
|
– 4
|
|
Max Speed
|
– 2.16GHz
|
|
L2 Cache
|
– 2MB
|
|
Chipset
|
– SoC
|
|
BIOS
|
– AMI 64Mb Flash ROM
|
|
Expansion Slot
|
|
Mini-PCIe
|
–1 (full size)
|
|
mSATA
|
– 1 share with SATA2 (full size)
|
|
PCIe
|
– 1 (x1, vertical or at side option)
|
|
SIM
|
– 1
|
|
Memory
|
|
Technology
|
– Dual Channel DDR3L 1333/1066MHz SDRAM
|
|
Max.
|
– 8GB
|
|
Socket
|
– 2 * SO-DIMM
|
|
Graphics
|
|
Controller
|
– Intel® HD Graphics
|
|
VRAM
|
– Shared Memory
|
|
VGA
|
– 1 (Internal, Max. Resolution: 1920×1080@60Hz)
|
|
LVDS
|
– 0
|
|
HDMI
|
–0
|
|
MultiDisplay
|
– No
|
|
Ethernet
|
|
Ethernet
|
– 10/100/1000 Mbps
|
|
Controller
|
– Intel i211AT GbE
|
|
Connector
|
– 4 * RJ45
|
|
SATA
|
|
Max Data Transfer Rate
|
–2 * SATAII (3.0Gb/s) (1 share with mSATA)
|
|
Rear I/O
|
|
Ethernet
|
– 4
|
|
USB
|
– 2 (1 * USB 3.0, 1 * USB 2.0)
|
|
Serial
|
– 1 * RS232
|
|
DC-input
|
– 1
|
|
Internal Connector
|
|
USB
|
– 4 (4 * USB 2.0)
|
|
VGA
|
– 1
|
|
Serial
|
– 1 (1 * RS-232 with 5V/12V selectable header)
|
|
SATA
|
– 2
|
|
mPCIe
|
– 1
|
|
mSATA
|
– 1
|
|
Chassis intrusion
|
– 1
|
|
PS/2
|
– 1
|
|
Watchdog Timer
|
|
Output
|
– From Super I/O to drag RESETCON#
|
|
Interval
|
– 256 segments,0,1,2…255sec/min
|
|
Power Requirements
|
|
Input PWR
|
– +12V DC-in (2-pin PWR Con)
|
|
Power On
|
AT/ATX Supported
– AT | Directly PWR on as Power input ready
–ATX: Press Button to PWR on after Power input ready
|
|
Certifications
|
|
Certifications
|
– CE, FCC, RoHS, REACH
|
|
Environment
|
|
Temperature
|
– Operating: 0°C – 60°C
|
|
– Storage: -20°C – 85°C
|
|
Warranty
|
– 2 Years Limited Warranty
|
