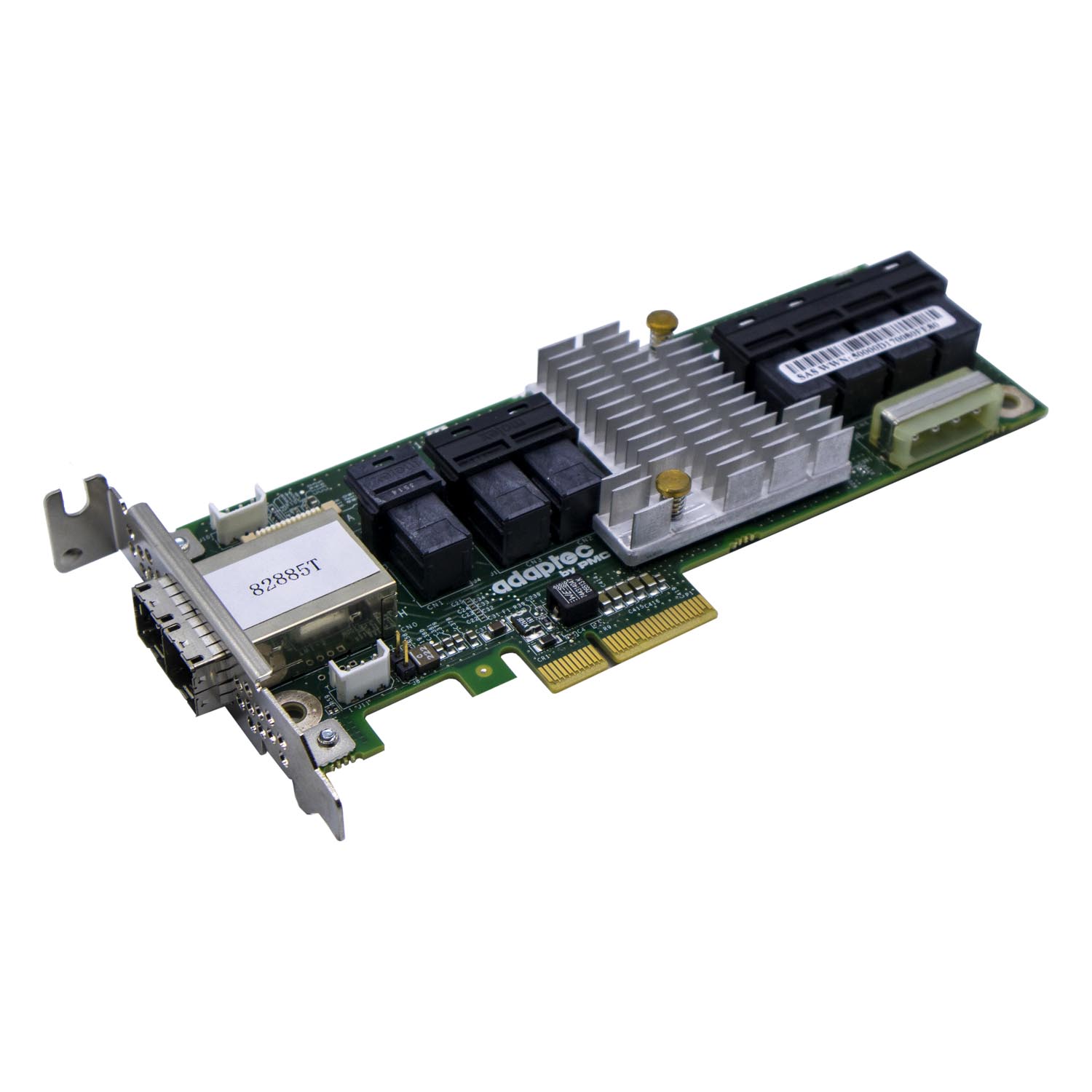

Adaptec 82885T 36 Port 12GB/s SAS Expander Card

Benefits

Low cost solution ideal for density optimized servers requiring direct connectivity to up to 24 SAS or SATA HDDs and SSD.

Supports 12 Gbps data rates and is backward compatible to 6 Gbps.

Key Differentiators

• 36 ports (28 internal, 8 external) in low-profile MD2 form factor

• Enables both internal and external connectivity

• Backwards compatible to 6 Gbps for legacy 6G SAS or SATA devices

• Complete portfolio of mini-SAS HD cables available

Customer Needs

High I/O transaction and high bandwidth processing; solutions that reduce energy consumption and maintenance costs;

low-profile form factor.

Management Utilities

Microsemi Adaptec maxView Storage Manager

Data Transfer Rate

12 Gbps per port

6 Gbps per port

Form Factor

MD2 – Low Profile

Package Contents

Adaptec SAS Exander 82885T Card

Physical Size

64mm x 167mm

Operating Temperature
0°C to 55°C* (with 200 LFM airflow)

Note: Please install this card only into server or PC chassis with recommended airflow (200 LFM). For maximum heat sink efficiency, the air should bypass the card horizontally.

Operating Voltage​

1.34A @ 12 VDC

Regulatory Certification

CE, FCC, UL, C-tick, VCCI, KCC, CNS

Environmental Compliance

RoHS

Mean Time Before Failure (MTBF)

1,000,000 hours at 40°C
